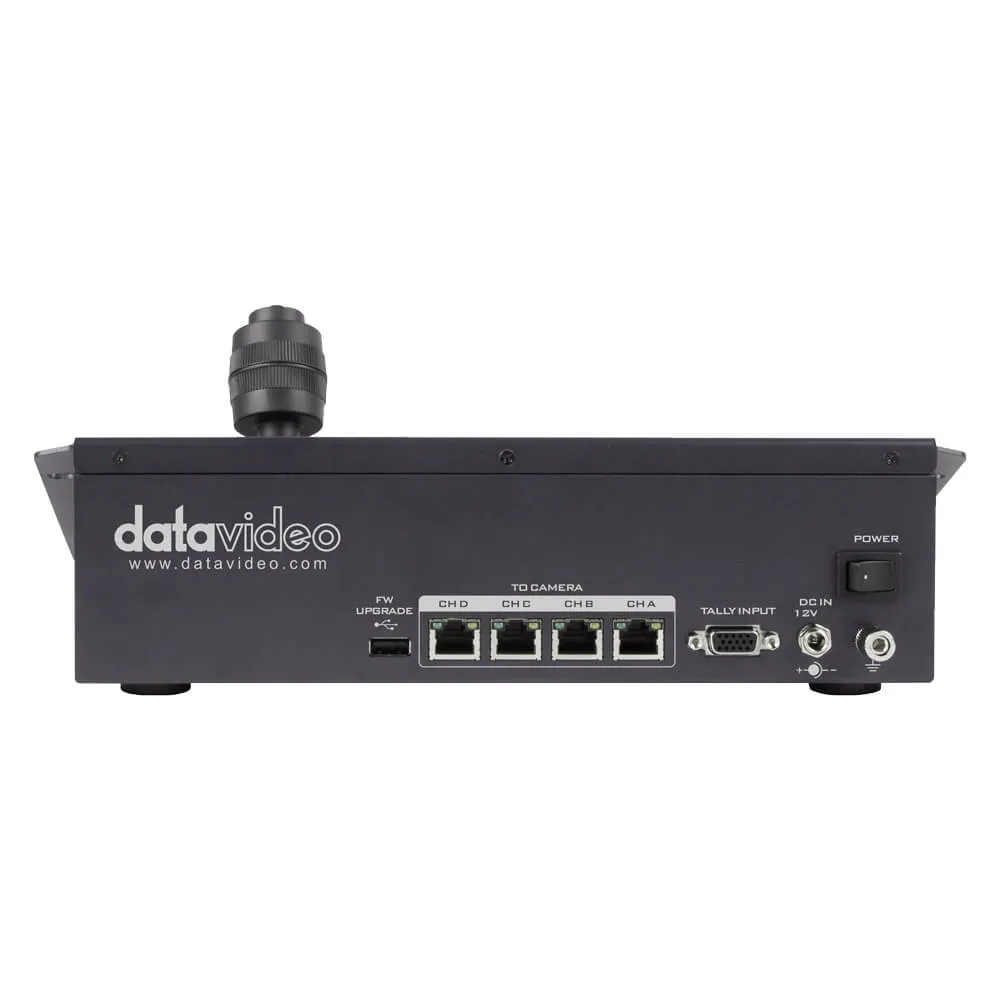

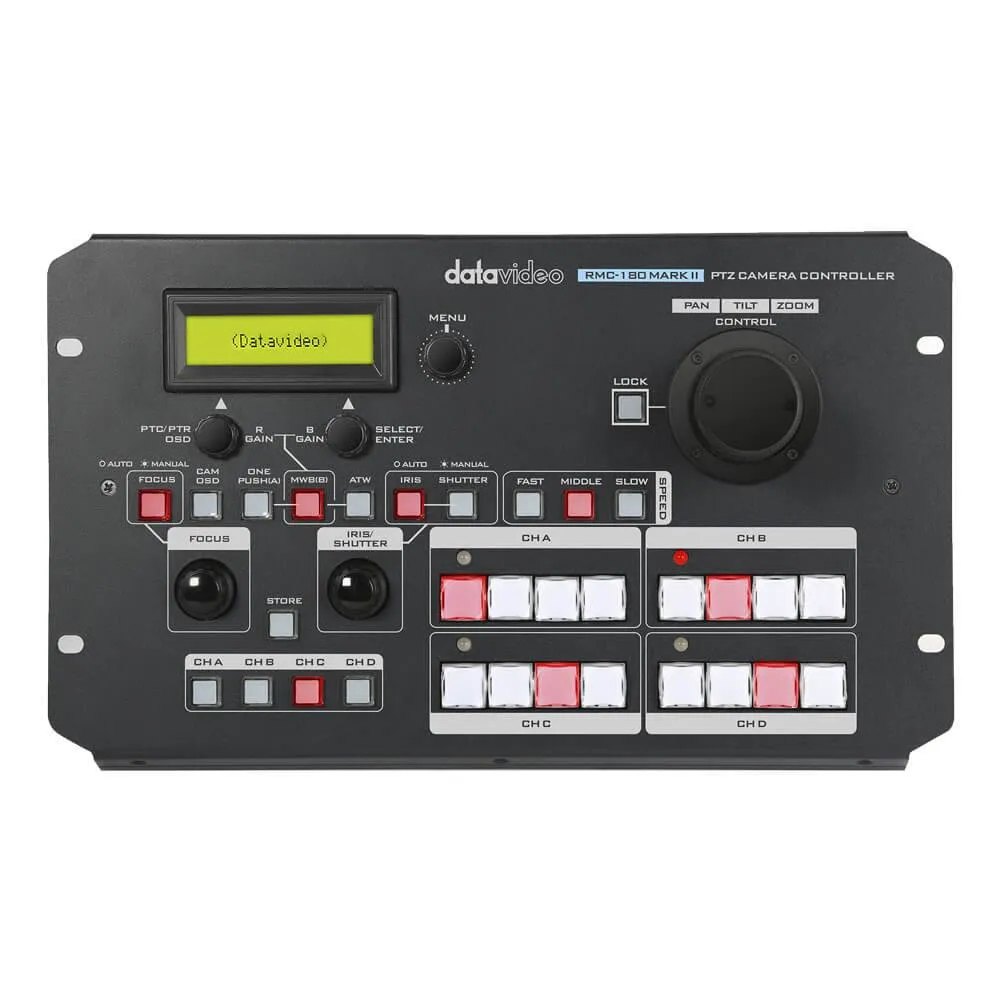

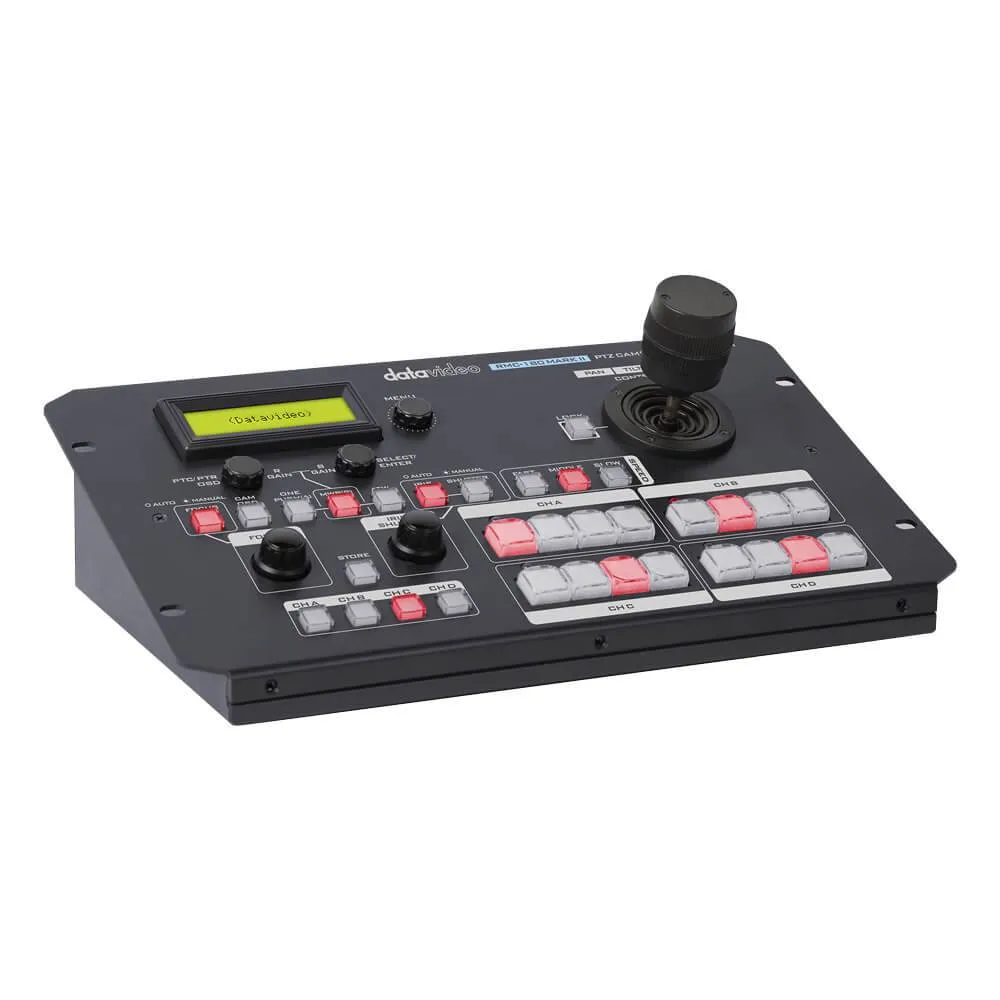

The Datavideo RMC-180 MARK II PTZ Camera Control is a camera controller that enables RS-422 control of up to four Datavideo PTZ, block, or Robotic Pan Tilt Heads. For any live video production, the RMC-180 MARK II's ergonomic joystick and tactile button layout make it simple to configure and control up to four Datavideo PTZ cameras and a Robotic Pan Tilt Head. Thanks to RS-422 standard interfaces, four RJ-45 ports between the RMC-180 MARK II and PTZ cameras allow for plug-and-play connectivity. The standard interface is RS-422, and any RJ-45 cable can be used to connect the RMC-180 MARK II to the RS-422 port on the Block/PTZ camera.

Key features:

• Remote control of up to four Pan, Tilt, and Zoom cameras
• Pan, Tilt, and Zoom with speed control by joystick
• Control of Pan, Tilt, and Zoom as well as Iris, Focus, Gain, and other functions over Ethernet
• Multiple presets for pan/tilt settings for each individual camera
• Full remote control of each camera via serial communication over an affordable network cabling
• Compatible with Datavideo's switcher tally indicators
• Compact design for easy installation
• Easy integration with Datavideo HD switchers for an affordable multi-camera solution.

Automatic Camera Position Presets
The RMC-180 MARK II includes four preset position shortcut keys for each of your cameras (up to 8 presets if only 2 cameras are connected). Simply program close-ups and wide-angle shots and recall them with a button press. To intuitively recall a preset, press the mechanical buttons assigned to each preset.

Manual Focus and Manual IRIS control
On specific models, the RMC-180 MARK II provides controls for Pan, Tilt, and Zoom, as well as Iris, Focus, Gain, and other functions such as the OSD. Control is accomplished via CAT5/CAT6 cables with RJ45 plugs.

Speed Mode
The controller can pan, tilt, and zoom the cameras at slow, medium, and rapid speeds. It provides a convenient method for selecting the camera's movement speed.

Compatible Camera Models:

• BC-80
• BC-200/200T
• PTC-140/140T/140TH/140NDI
• PTC-150/150T
• PTC-200/200T
• PTC-280
• PTR-10/10T MARK I
