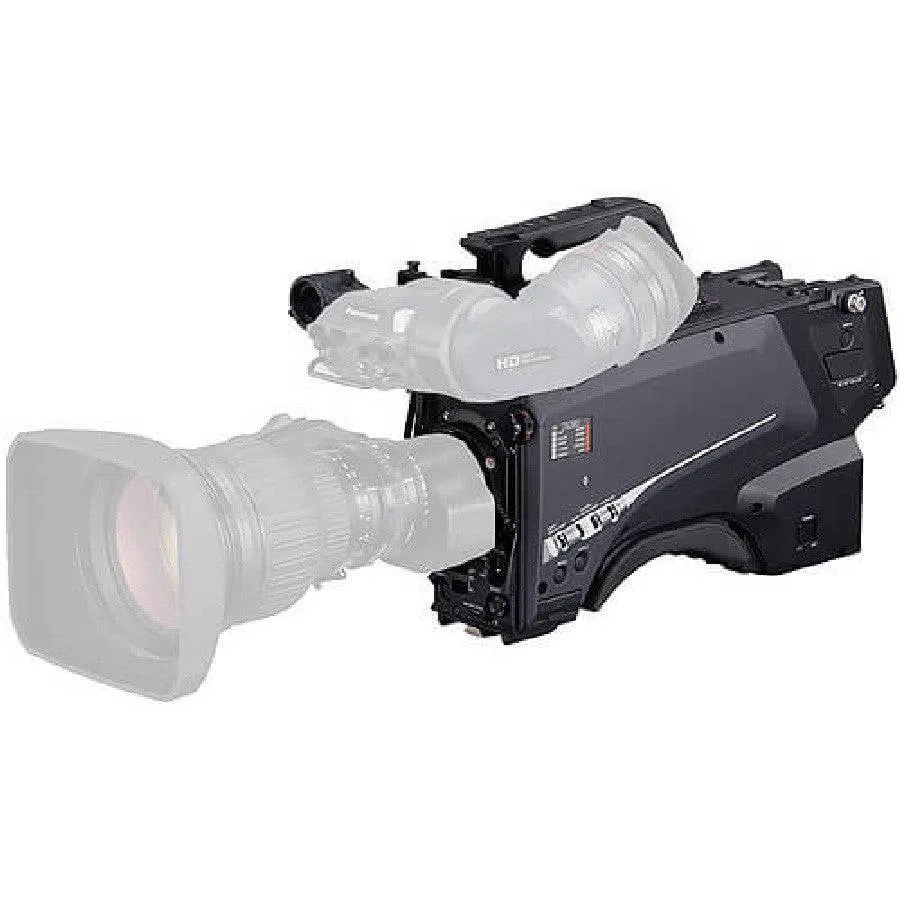

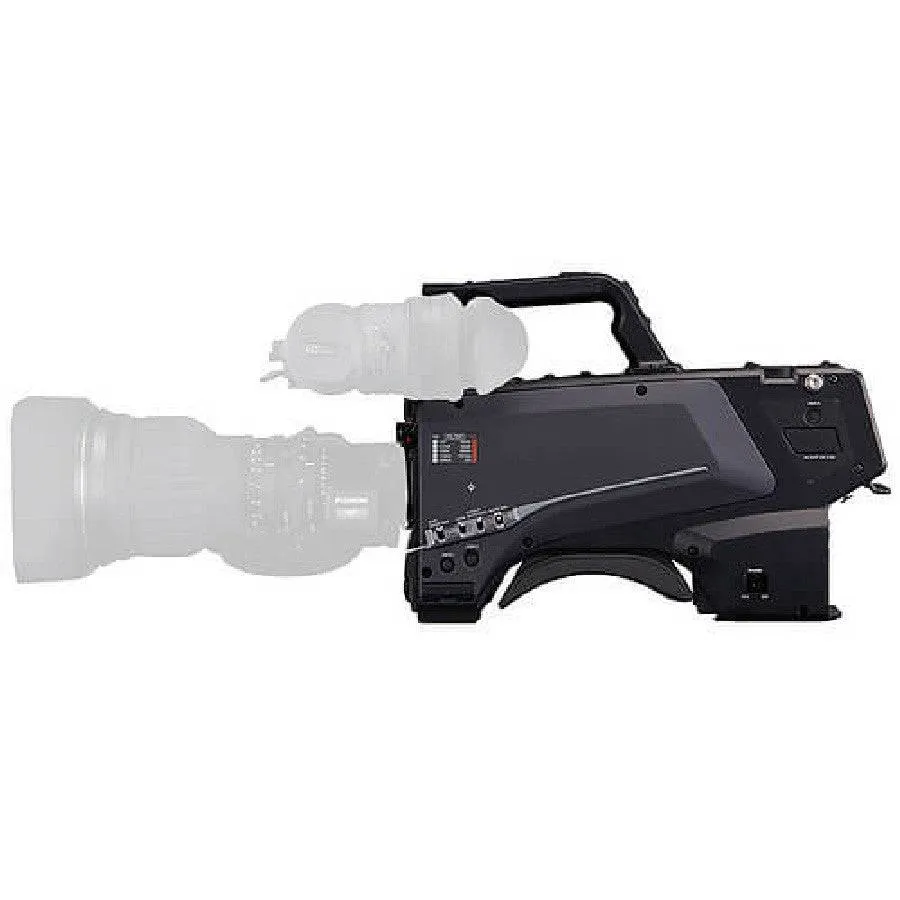

The Panasonic AK-HC5000 HD Broadcast Camera with Tajimi Connector is equipped with newly developed 2/3-type MOS sensors that produce high sensitivity and an excellent S/N ratio. While including functions appreciated in the conventional model such as DRS and CineGamma, the AK-HC5000 Series adds new features such as focus assist, flash band compensation, and skew reduction which is realized through high-speed readout from the MOS sensors. There are additional functions to improve the shooting experience; including enhanced shock less gain (-3 dB to 36 dB), a user gamma function, black gamma correction according to the pedestal setting, multi-step DNR, and easy matrix adjustment.

*This camera does not include the lens or accessories.

The Full System
The AK-HC5000 delivers excellent image quality and operability. When used with the AK-UCU500 Camera Control Unit, it is capable of 1080/60p, 240p image output, and high-image-quality uncompressed long-distance transmission as well as a Hybrid Log-Gamma (HLG) output option simultaneous with standard gamma for live HDR (High Dynamic Range) production. Also available to use alongside this product is the AK-HRP1000/AK-HRP1005 Remote Operation Panel, equipped with a color LCD to provide visibility of the display for smooth control.

The camera and camera control unit can be connected for an approximately 2,000-meter long-distance transmission of video signals when power is supplied from the camera control unit. The remote operation panel and the camera can be connected using a dedicated cable. The AK-HVF100 9 inch LCD color viewfinder has also been newly developed and equipped with a large display and diverse functions such as focus assist. Overall, this system offers superior cost performance with respect to both operability and ease of use.

AK-HC5000 Key Features:

• HD system camera channel equipped with a newly-developed 3MOS sensor
• The combination of larger pixels and optical expansion makes efficient use of incident light to achieve high sensitivity (F12@50p) and low noise (S/N 60dB)
• High-speed scanning from the MOS sensor supports features including focus assist, flash band compensation and skew reduction
• Built-in optical conversion lens allows standard 2/3-type B4 mount lenses to be used
• IP streaming and IP control is supported
