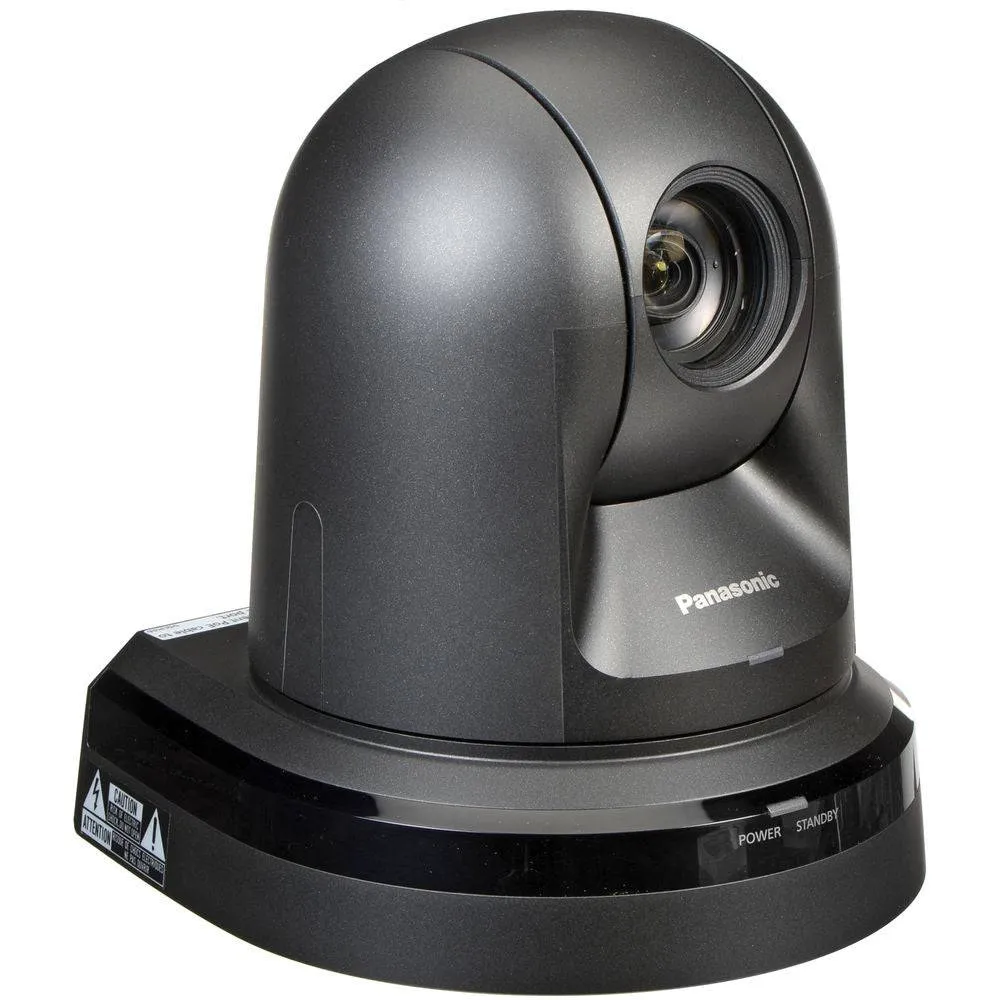

The Panasonic AW-HE40S HD-SDI Output PTZ Camera (Black) is an integrated full HD robotic camera that performs in a wide variety of onsite shooting applications that require high-quality videos, such as conferences, lecture capture, and other events, thanks to its 30x Optical & 10x Digital Zoom, wide angle of view and outstanding color reproducibility. The AW-HE40S pan/tilt/zoom camera incorporates newly-developed 1/2.3-type full HD MOS sensors and Digital Signal Processors (DSP) for high sensitivity, high resolution, and superior video capture in a wide range of shooting conditions. It offers the flexibility of not requiring any specific installation location thanks to IP transmission and support for PoE , which allows power to be supplied via a LAN cable
1/2.3-type MOS Sensor
This PTZ Camera is Equipped with a newly developed 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.
Optical 30x Zoom Lens & Resolution 40x Zoom
In addition to 30x optical zoom, the AW-HE40 series can zoom up to 40x while maintaining high-resolution thanks to Super Resolution technology. It also features a 16x digital zoom*2 and a 1.4x digital extender, which enables the AW-HE40 series to shoot in large conference halls and classrooms.
Night Mode
Switching to Night Mode makes shooting possible even in low light conditions in which shooting is normally difcult, such as when observing wildlife. *3 The AW-HE40 series can also be set to switch to the mode automatically depending on surrounding light levels.
High Dynamic Range
In addition to conventional Dynamic Range Stretch (DRS) and Digital Noise Reduction (DNR), the AW-HE40 is newly equipped with High Dynamic Range (HDR) mode. When shooting and synthesizing two images with different exposure times, the AW-HE40 series can create videos with high visibility that corrects for halation and black defects even under backlit conditions.
Exceptional pan-tilt performance
The pan range of ±175 ° and the tilt range of -30 ° to 90 ° cover a wide shooting area*5. Pan and tilt operate at a maximum speed of 90° /second and respond quickly to remote control operation. They operate quietly at a sound level of NC35 or lower.
Support PoE
By connecting network devices that support the IEEE802.3at PoE standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local AC outlet, installation costs can be signicantly reduced.
IP control with image monitoring
Equipped with image compression and IP transmission LSI. IP video*3 can be transmitted to up to ve terminals*2 per camera. Using an IP browser, the camera can be controlled from a remote location, and IP video monitoring and remote camera control can be performed from a PC, Mac, or mobile terminals*4 such as an iPhone, iPad or Android device, enabling easy operations.
