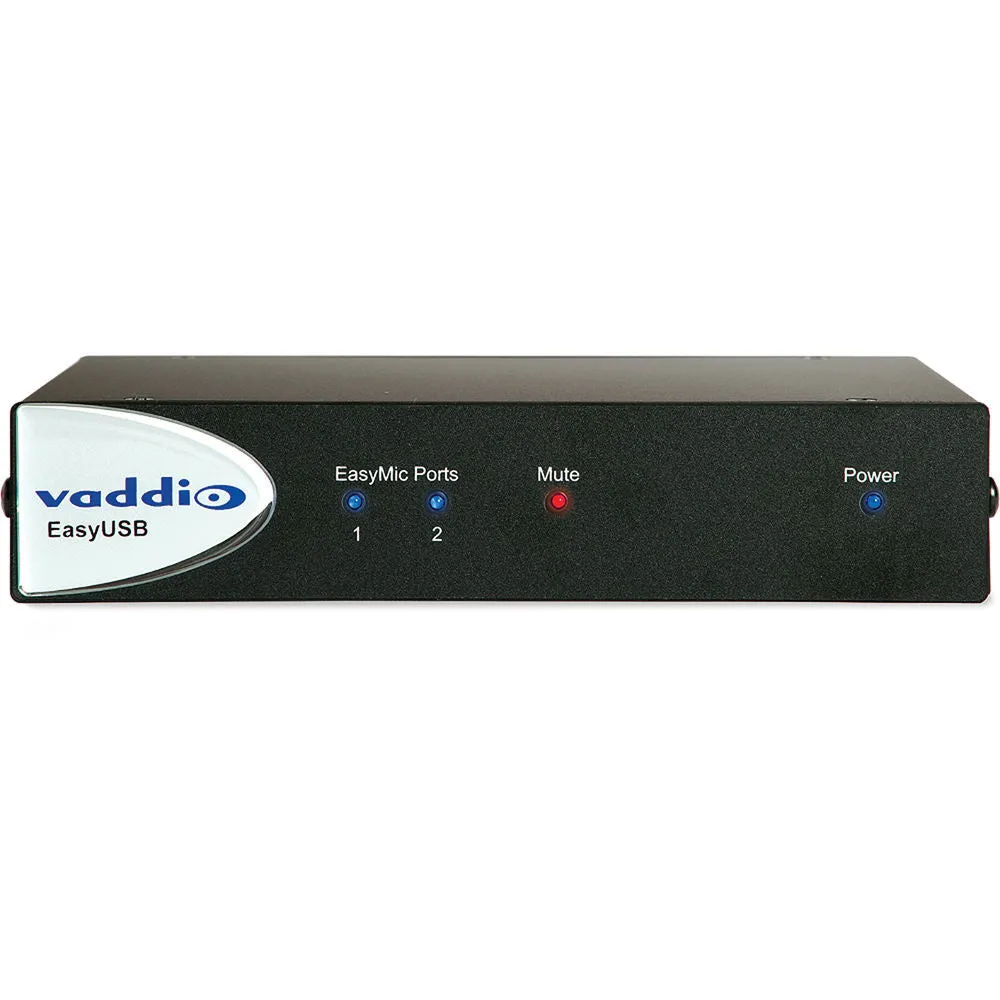

The Vaddio EasyUSB Mixer/Amp is an integrated audio mixer and amplifier that connects to a PC as a single microphone and speaker channel. It supports up to 2 Easytalk MicPOD microphones. In addition, analog line level input / output interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers, or LCD displays. The EasyUSB Mixer/Amp also has two 20W integrated audio amplifiers for connection to external 4/8? speakers.
The Easytalk USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional software or drivers. You just have to plug in each device, and they will work automatically with any operating system such as Windows, Mac, Linux, and many more. It�s completely driver-free, and is designed as a plug-and-play audio solution for software-based conferencing systems.
- Supports up to 2 EasyMic devices (MicPOD or Ceiling MicPOD) using RJ-45 & CAT-5 cables for audio, control, and power (100')
- Two 20W Class-D amplifier with 2-pin Euro terminal
- Connects to PC as a USB sound device
- USB 2.0 UAC (Audio Class Device) / no drivers required
- Auxiliary line input and output
- Unbalanced line input and output (RCA)
| Audio | Frequency Response: 20 Hz to 20 kHz Dynamic Range: >90 dB THD Noise: <0.02% |
| Line Input | Analog Connector: RCA (unbalanced) Impedance: 10 k? Nominal Level: -10 dBu |
| Line Output | Analog Connector: RCA (unbalanced) Impedance: 10 k? Nominal Level: -10 dBu |
| Amplifier | Connector: 2-pin Molex Euro Impendence: 8 ? Amplifier Output: 2 x 20 W THD Noise: <0.2% at 1/3 power |
| Audio Interface | USB Connector: Type-B PC Audio Controls: Mute & volume PC HID Controls: On / off hook |
| Ports | Connectors: 2 x RJ 45-F Proprietary Interface Cable Distance: Maximum 100.0' (30.4 m) CAT-5 |
| Settings | Audio Processing 8-Position Dip Switch: Mixing modes, compressor, filter, delay |
| Indicators | User Communications status, mute, power |
| Power Supply | 18 VDC, 2.75 A |
| Protocol | Serial Control: RS-232 (external control) |
| Operating Conditions | Temperature: 32 to 104° F (0 to 40° C) Relative Humidity: 20 to 80% |
| Power Consumption | Maximum 40 W |
| Dimensions (H x W x D) | 8.38 x 6.00 x 1.72" (212.73 x 152.40 x 43.70 mm) |
| Weight | 1.42 lb (0.65 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.5 lb |
| Box Dimensions (LxWxH) | 16.1 x 9.5 x 3.4" |
- 18VDC, 2.75A PowerRite Power Supply with North American Power Cord
- 6' (1.83m) USB Type-A to Type-B Cable (Black)
- 2 x Phoenix-Type Connector for Speaker Terminals
- Limited 1-Year Warranty on Parts
