- Video, Power, Network, and Control
- Single Ethernet Cable Run
- Supports Cable Runs up to 328'
- Bidirectional Ethernet and RS-232
- Bidirectional HDMI Video up to 1080p60

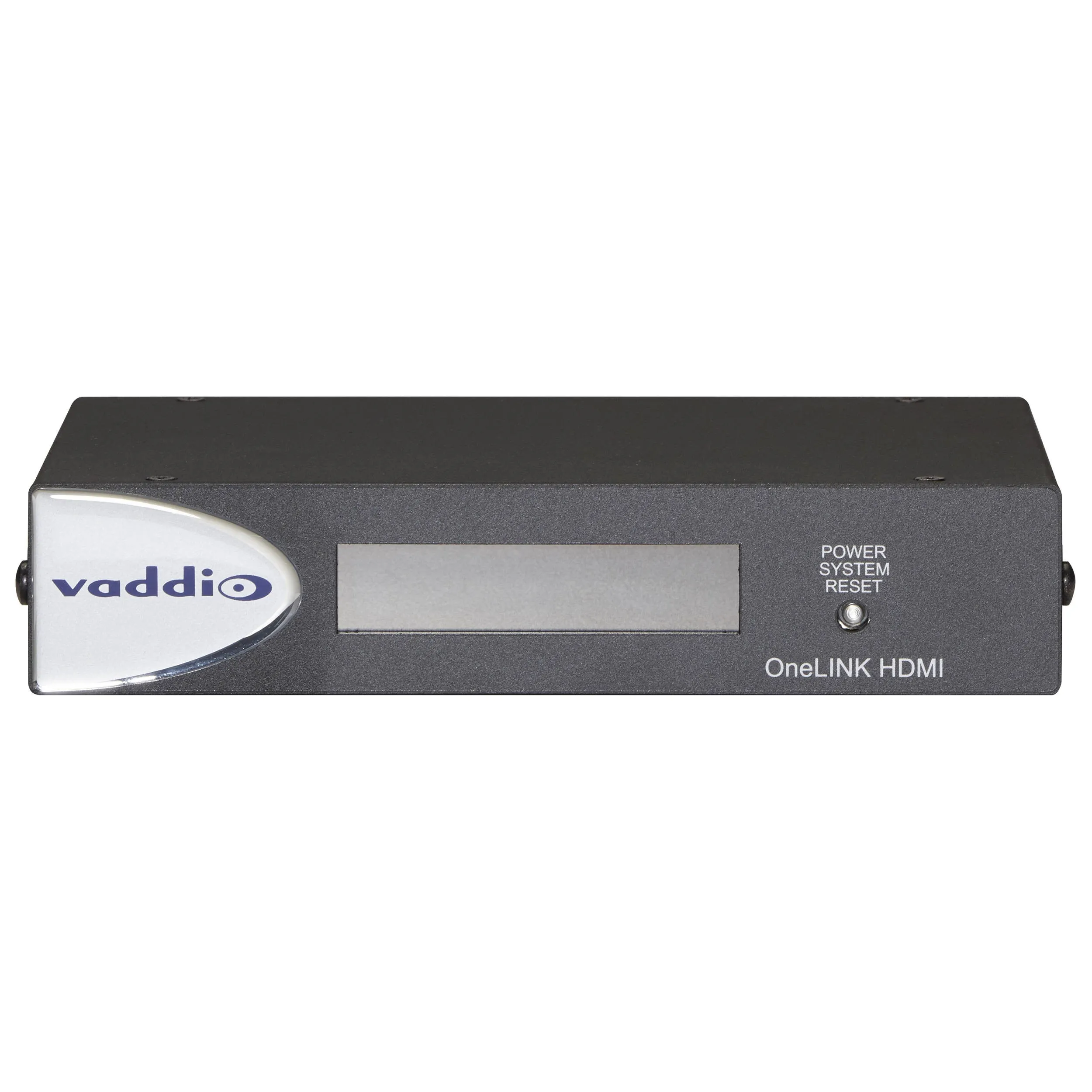

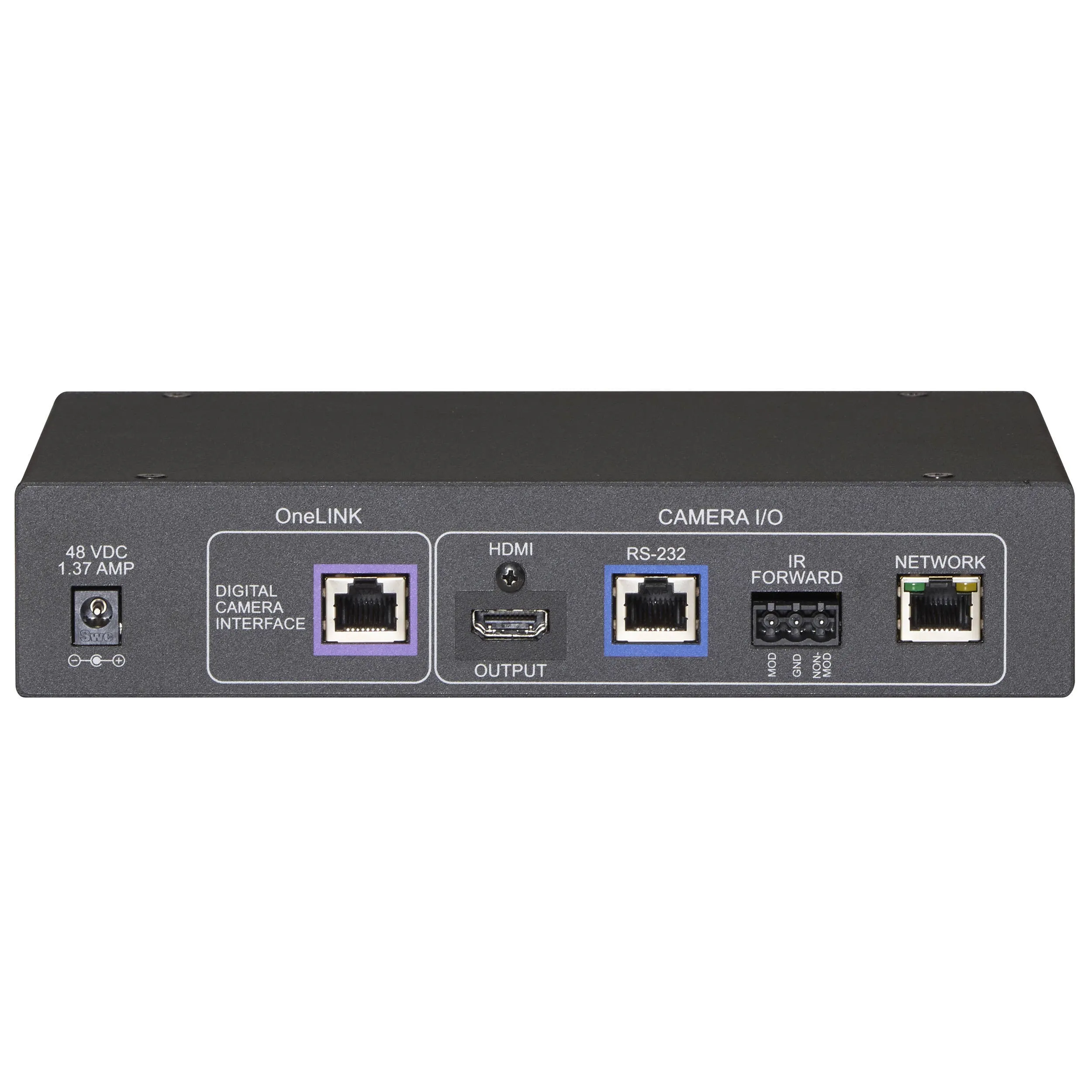

The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
-
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328'
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60
In the Box
Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
- 48 VDC, 1.36A Switching Power Supply
- AC Cord Set
- Limited 2-Year Warranty
| Cable Run | Max: 328' / 100 m |
| Power | Input: 48 VDC, 1.36 A To Camera: 12 VDC, 3 A |
| Environmental | Operating/Storage Temperature: 32 to 104�F / 0 to 40�C Humidity: 20 to 80% RH (non-condensing) |
| Dimensions | 1.73 x 8.39 x 5.98" / 44 x 213 x 152 mm |
| Weight | 1.55 lb / 0.7 kg |
