Wooden Camera 275400 Overview
- 1 Description
- 2 Wooden Camera Top Plate for Sony FX9
- 3 Wooden Camera Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
- 4 Wooden Camera NATO Handle Plus V2
- 5 Wooden Camera NATO Safety Rail with ARRI-Style Mount (2.8", 1.67" Channel)
- 6 Wooden Camera 15mm Support Rod (15")
- 7 Wooden Camera Safety Dovetail Plate (8")

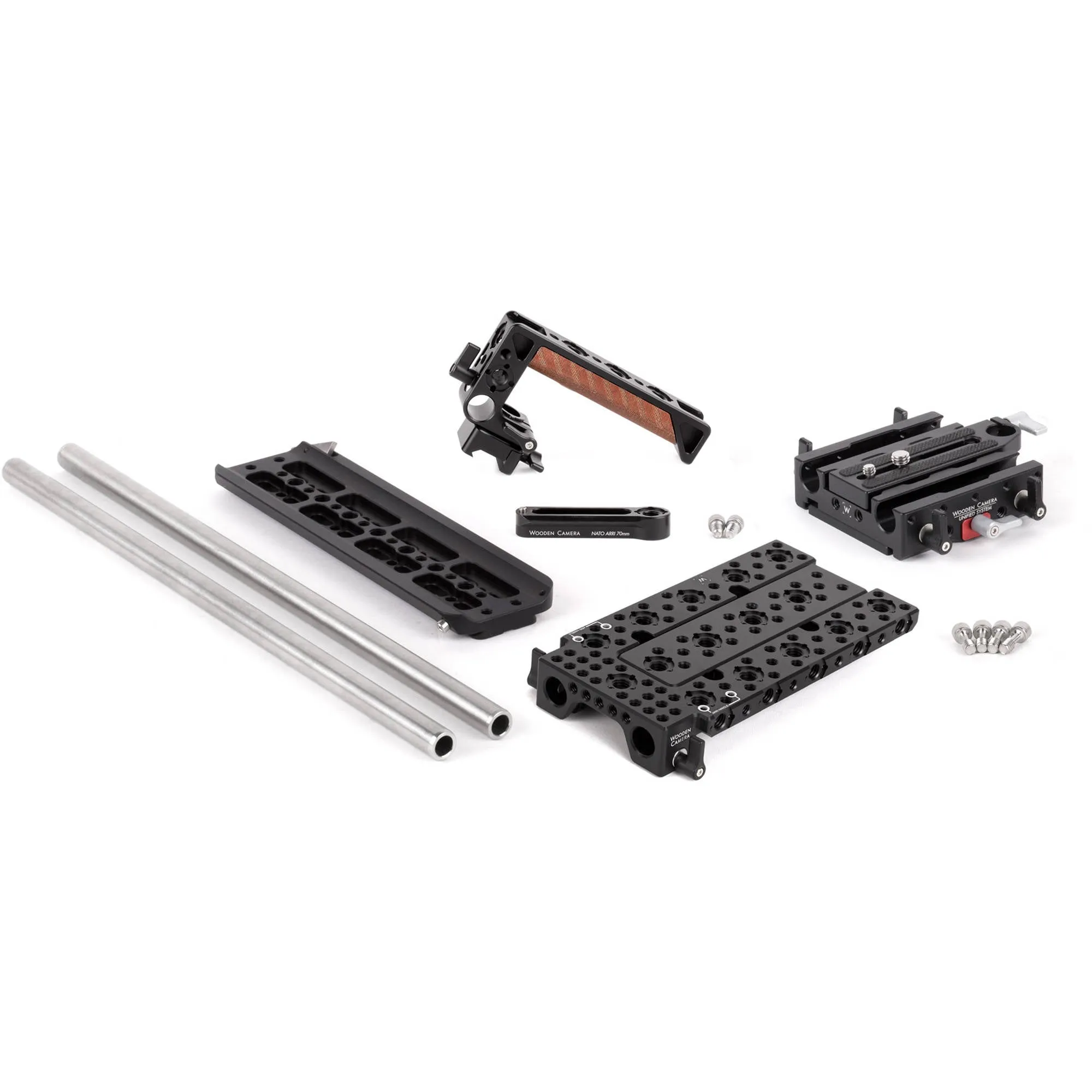

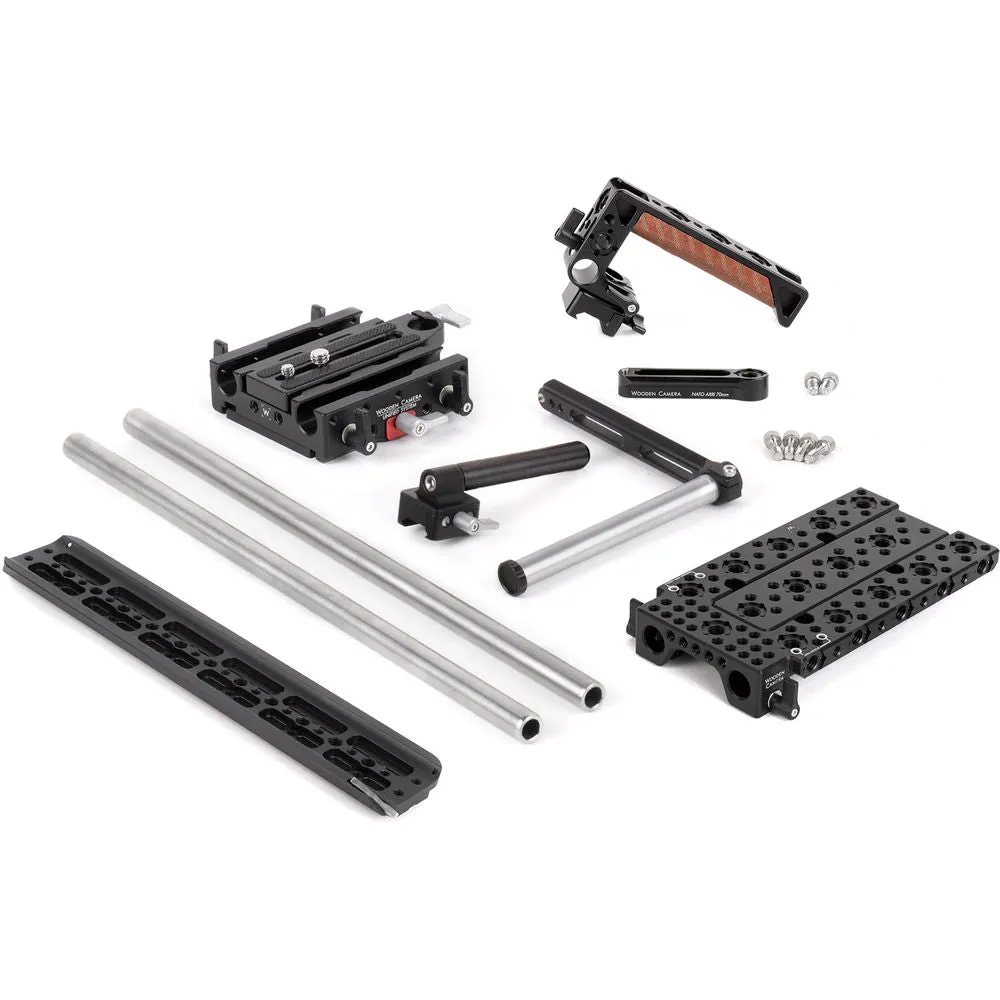

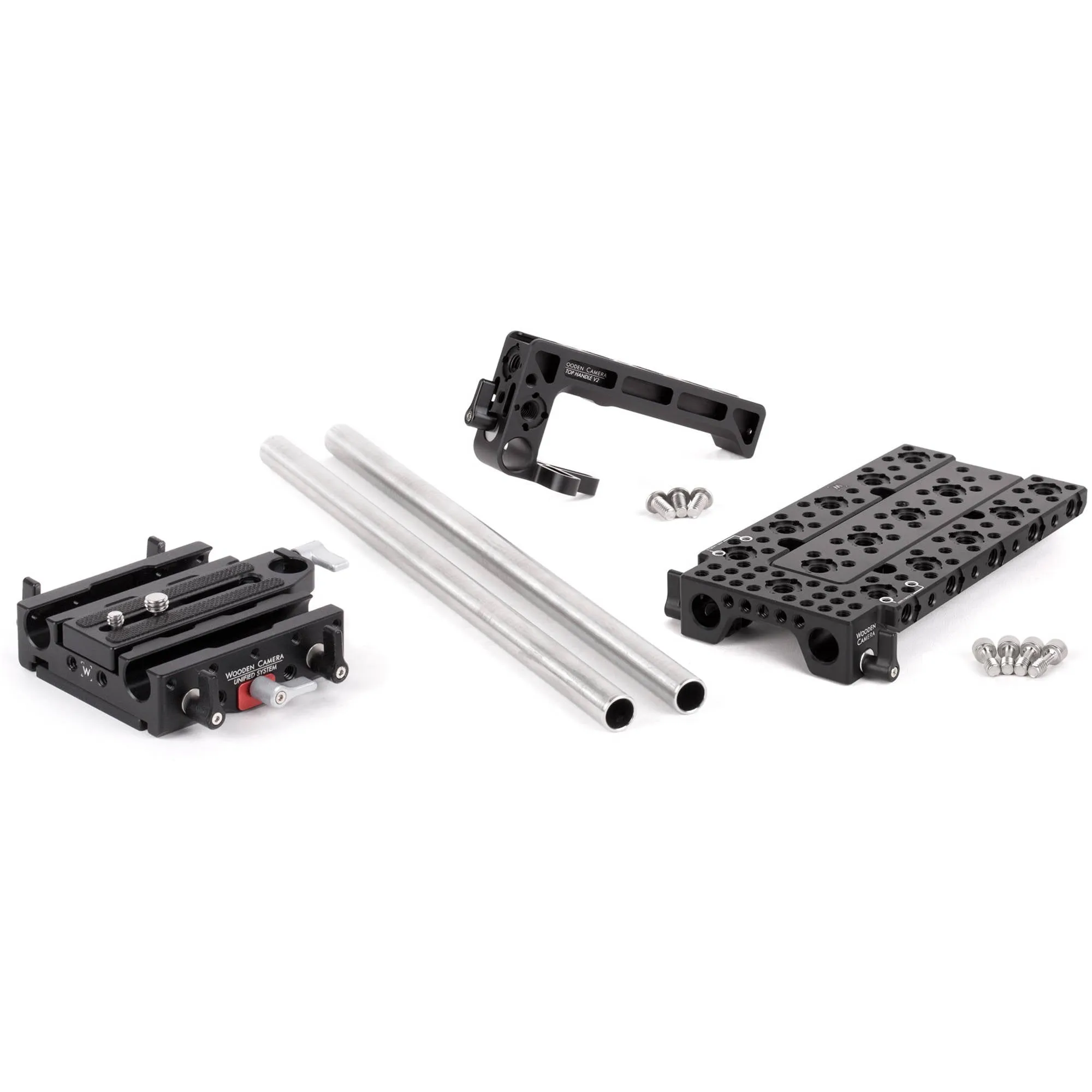

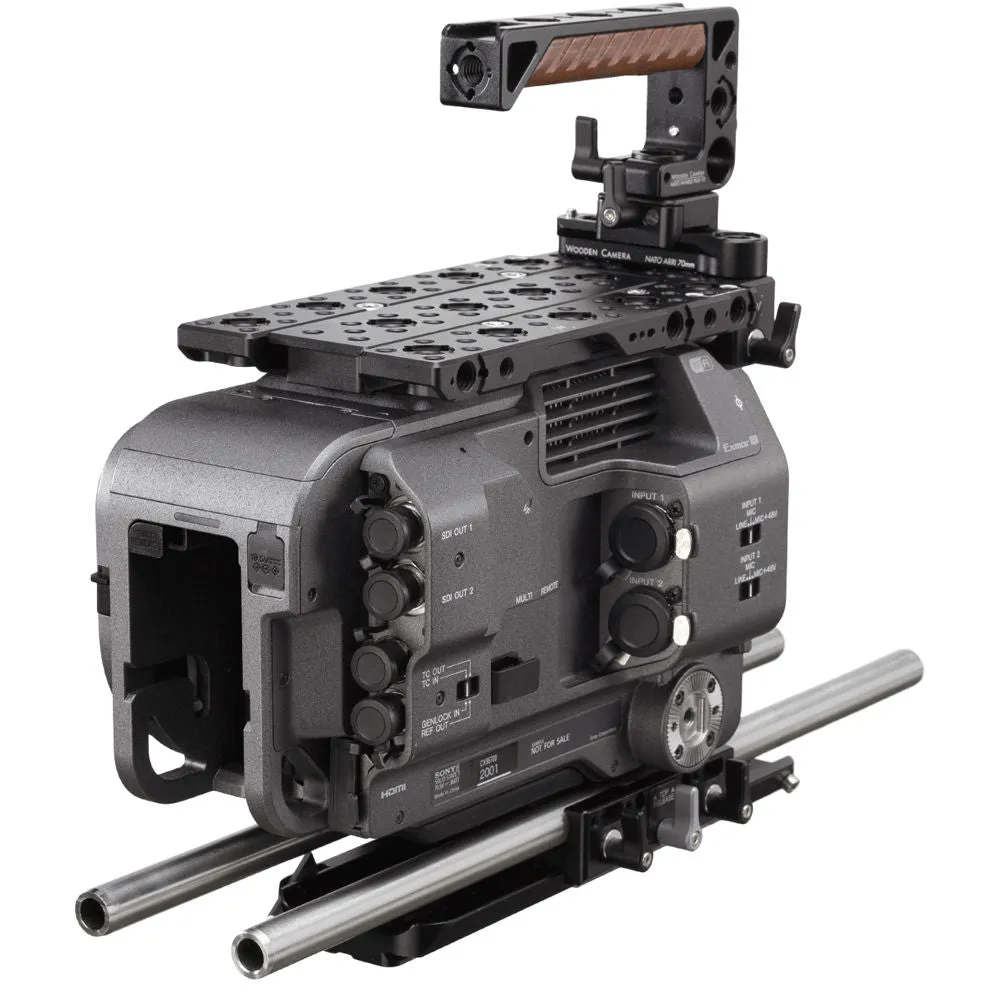

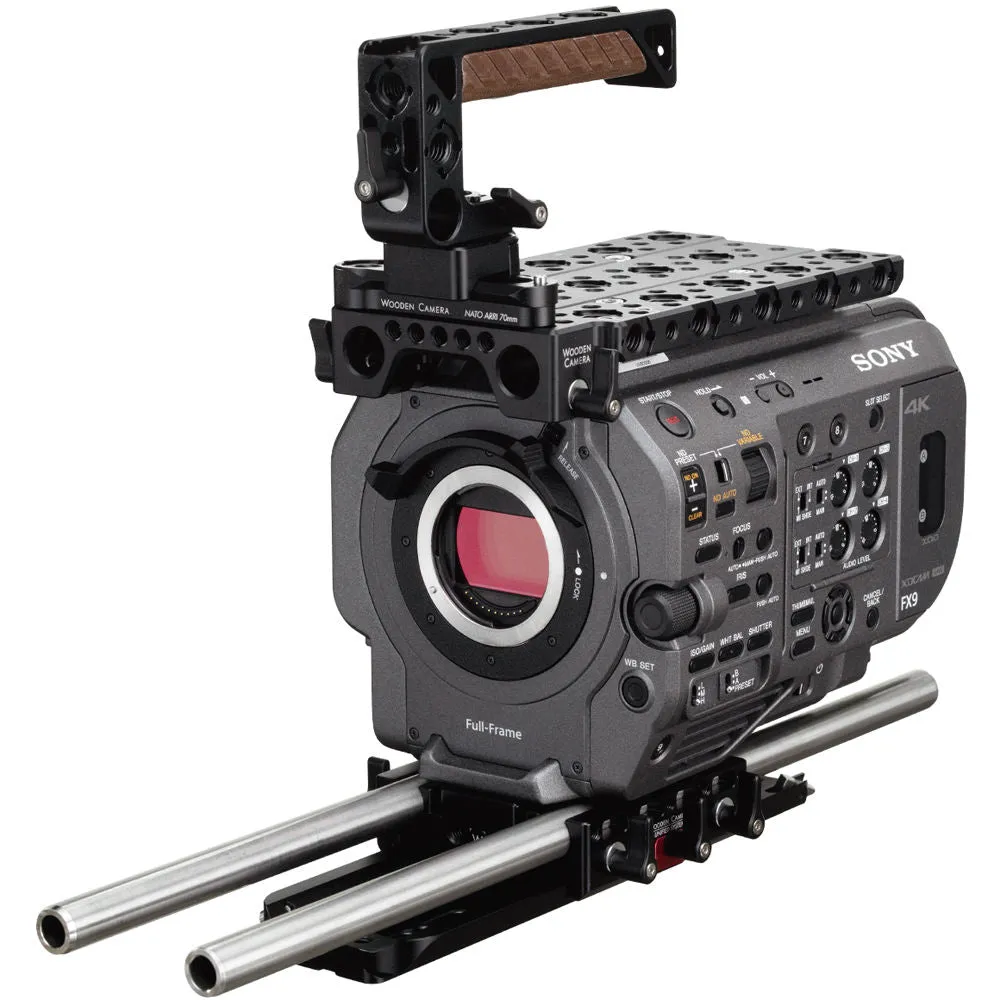

Set up your Sony PXW-FX9 camera for professional video and cinema production with this Advanced version of the Wooden Camera Unified Accessory Kit . Centered around the FX9 Unified Baseplate, this kit can function in both handheld shoots and on stationary rigs.
The included 15" long 15mm rod pair fits in the baseplate and offers mounting points for accessories such as a matte box, follow focus, lens support, or lens motors. The top plate features multiple 1/4"-20 and 3/8"-16 anti-twist threads where you can add accessories and remount the original camera handle. The wood-lined top handle attaches to the top plate via the included NATO rail and provides a convenient, secure way to hold your camera. It features multiple 1/4"-20 and 3/8"-16 anti-twist threads, two shoe mounts, and a 15mm rod port.
The included 8" dovetail plate allows you to mount your rig onto a tripod and balance the camera. See below for more information on the individual items included in this kit.
Wooden Camera Top Plate for Sony FX9
The Wooden Camera Top Plate for Sony FX9 attaches to the top of the camera, contouring its shape, and provides 1/4"-20 threads, 3/8"-16 ARRI accessory mounts, and a 15mm LWS rod mount. A component in the center of the plate can be removed to allow attaching the camera's original top handle with full communication with the camera. The Sony XDCA-FX9 Extension Unit can also be attached to the rear of the camera without the plate getting in the way.
Four 1/4"-20 screws are included for securing the top plate to the camera. An M2 Phillips screw is also supplied for relocating the Sony cable clamp to the side of the top plate.
Wooden Camera Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.
The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS7 and Canon C100 Mk II, C300 Mk II, and C100/C300/C500. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.
The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.
The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.
The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).
Key Features
- Supports 15mm LWS rods at the correct lens height
- Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
- Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
- Two quick release options�remove Core Unit or remove Dovetail Camera Plate
- Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
- Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
- Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
- Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
- Anti-twist, non-slip rubber surface
- Upgradable for VCT-14 compatible mounting options
- Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
- Backward compatible with original Wooden Camera Quick Dovetail
Wooden Camera NATO Handle Plus V2
The Wooden Camera NATO Handle Plus V2 mounts on a standard NATO rail on your camera rig, providing a comfortable carrying handle and accessory mounting.
The handle features quick release mounting and can be rotated up to 180° with indents indicating 90° increments. Accessory mounting options include a single 15mm rod port, two cold shoe mounts, and multiple 1/4"-20 and 3/8"-16 threads including ARRI-style anti-twist mounts. The underside of the NATO Handle Plus V2 incorporates a durable wood-look composite handgrip.
NATO Quick Release
Rotating Grip
Single 15mm Rod Clamp
Integrated Cold Shoes
Accessory Threads
Wooden Camera NATO Safety Rail with ARRI-Style Mount (2.8", 1.67" Channel)
The 2.8" NATO Safety Rail with ARRI-Style Mount from Wooden Camera attaches to your camera or other device using any two 1/4"-20 holes up to 1.67" apart on-center. This rail features an ARRI-style anti-twist accessory mount on one end and a spring-loaded safety pin on the other.
Use this rail to mount NATO handles, clamps, and other accessories on your camera. It is compatible with RED and third-party NATO-style accessories.
Features
Wooden Camera 15mm Support Rod (15")
This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
Wooden Camera Safety Dovetail Plate (8")
The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
In the Box
- Wooden Camera Top Plate for Sony FX9
- 4 x 1/4"-20 x 1/2" Screw
- M2 Philips Screw
- Limited 1-Year Warranty
- Wooden Camera Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
- Wooden Camera Unified Baseplate Core Unit (No Dovetails)
- Wooden Camera Unified Baseplate Camera Dovetail Plate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
- Wooden Camera Unified Baseplate Lower Quick Dovetail
- Limited 1-Year Warranty
- Wooden Camera NATO Handle Plus v2 Kit with 2.8" Rail
- Wooden Camera NATO Handle Plus V2
- Wooden Camera NATO Safety Rail with ARRI-Style Mount (2.8", 1.67" Channel)
- 2 x Wooden Camera 15mm Support Rod (15")
- Limited 1-Year Warranty
- Wooden Camera Safety Dovetail Plate (8")
- Limited 1-Year Warranty
- Description
- Wooden Camera Top Plate for Sony FX9
- Wooden Camera Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500
- Wooden Camera NATO Handle Plus V2
- Wooden Camera NATO Safety Rail with ARRI-Style Mount (2.8", 1.67" Channel)
- Wooden Camera 15mm Support Rod (15")
- Wooden Camera Safety Dovetail Plate (8")
Wooden Camera Top Plate for Sony FX9 Specs
| Mount Types | 1/4"-20 Female 3/8"-16 ARRI Accessory Mounts |
| Dimensions | 7.6 x 4 x 1.1" / 19.4 x 10.2 x 2.9 cm |
| Weight | 0.6 lb / 273 g |
| Package Weight | 0.805 lb |
| Box Dimensions (LxWxH) | 7.85 x 4.6 x 1.55" |
Wooden Camera Unified Baseplate for FS7, C100 Mk II, C300 Mk II, C100/C300/C500 Specs
| Dimensions | 2 x 6 x 6" (5 x 15 x 15 cm) |
| Weight | 0.8 lb (363 g) |
| Package Weight | 0.82 lb |
| Box Dimensions (LxWxH) | 4.95 x 4.6 x 1.15" |
Wooden Camera NATO Handle Plus V2 Specs
| Accessory Mounting Threads | Multiple 1/4"-20 and 3/8"-16 ARRI Anti-Twist |
| Shoe Mounts | 2 x Cold Shoes |
| Rod Mount | 1 x 15 mm |
| Dimensions | 5.3 x 3.4 x 1.3" / 13.3 x 8.5 x 3.3 cm |
| Weight | 8.6 oz / 245 g |
| Package Weight | 0.685 lb |
| Box Dimensions (LxWxH) | 6.8 x 4.3 x 3.25" |
Wooden Camera NATO Safety Rail with ARRI-Style Mount (2.8", 1.67" Channel) Specs
| Accessory Mount Type | 1 x 3/8"-16 ARRI-Style |
| Length | 2.8" / 70 mm |
| Hole Spacing | Up to 1.67" / 42.5 mm |
| Dimensions | 3.3 x 0.8 x 0.6" / 82.6 x 20.5 x 16.4 mm |
| Weight | 1.26 oz / 36 g |
| Package Weight | 0.12 lb |
| Box Dimensions (LxWxH) | 3.45 x 1.9 x 0.7" |
Wooden Camera 15mm Support Rod (15") Specs
| Rod Size | 15 mm |
| Rod Length | 15" (38 cm) |
| Package Weight | 0.64 lb |
| Box Dimensions (LxWxH) | 15.7 x 1.25 x 0.75" |
Wooden Camera Safety Dovetail Plate (8") Specs
| Dimensions | 8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm |
| Weight | 0.6 lb / 0.3 kg |
| Package Weight | 0.635 lb |
| Box Dimensions (LxWxH) | 9 x 2.8 x 0.65" |
